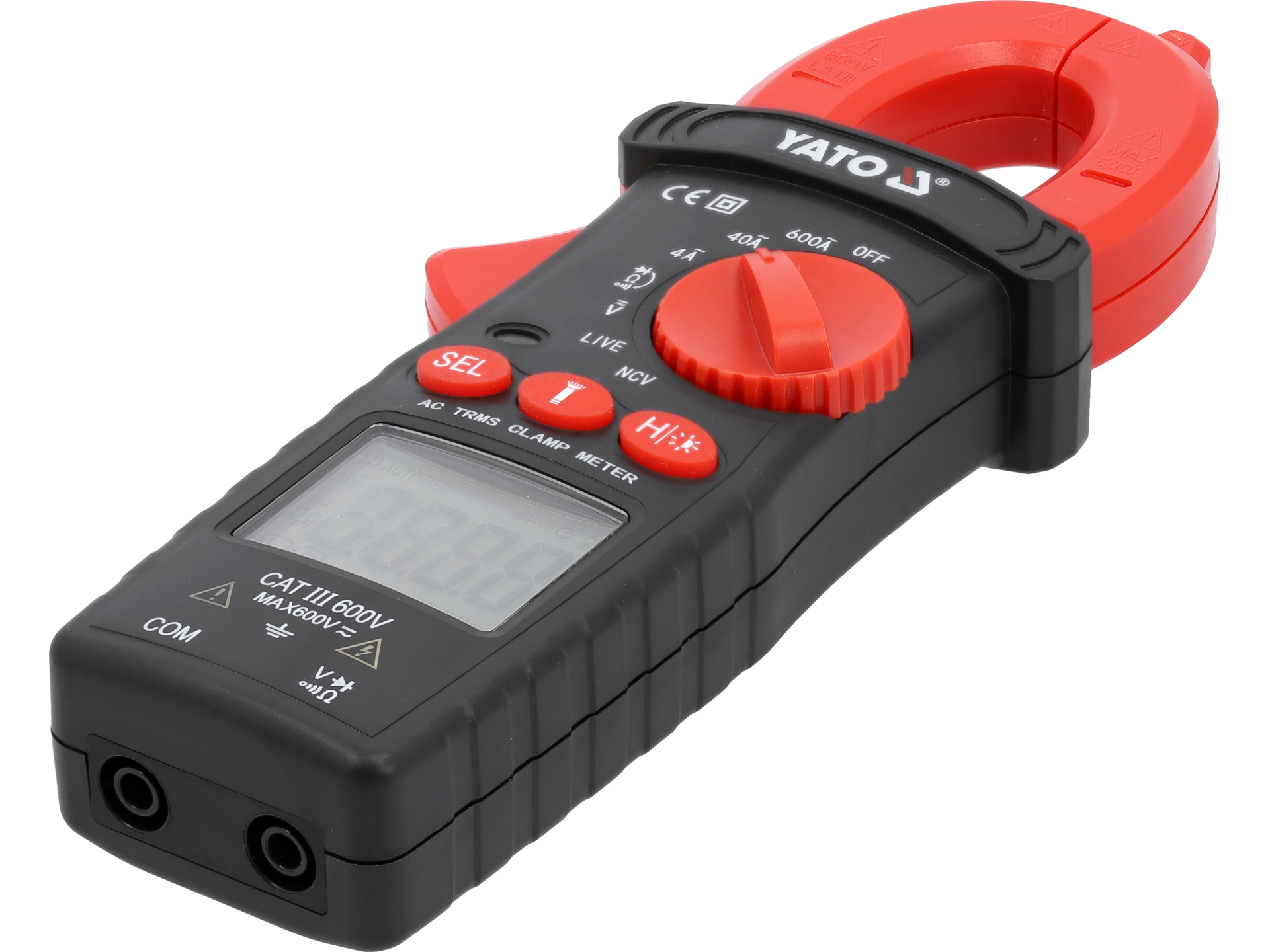

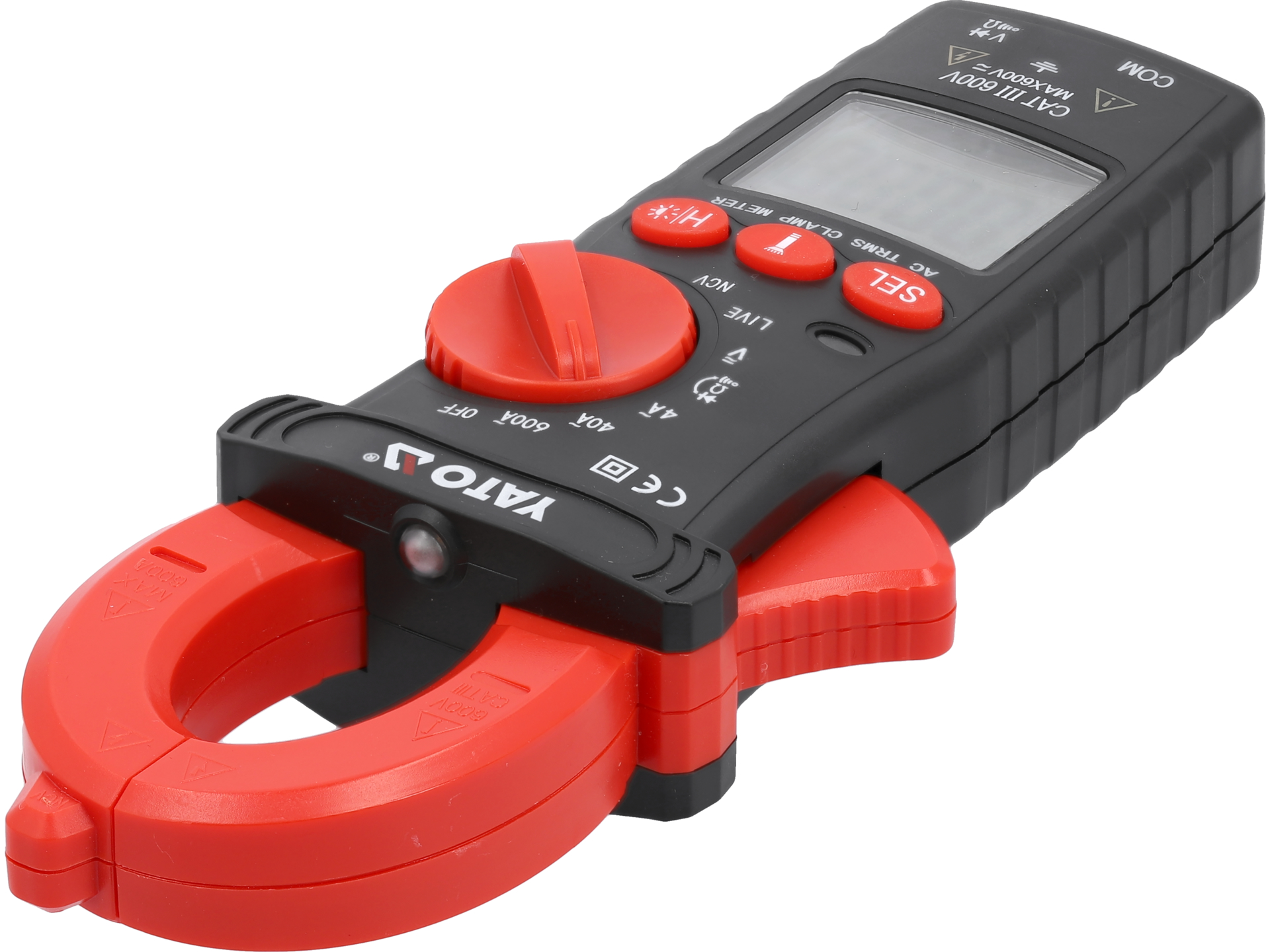

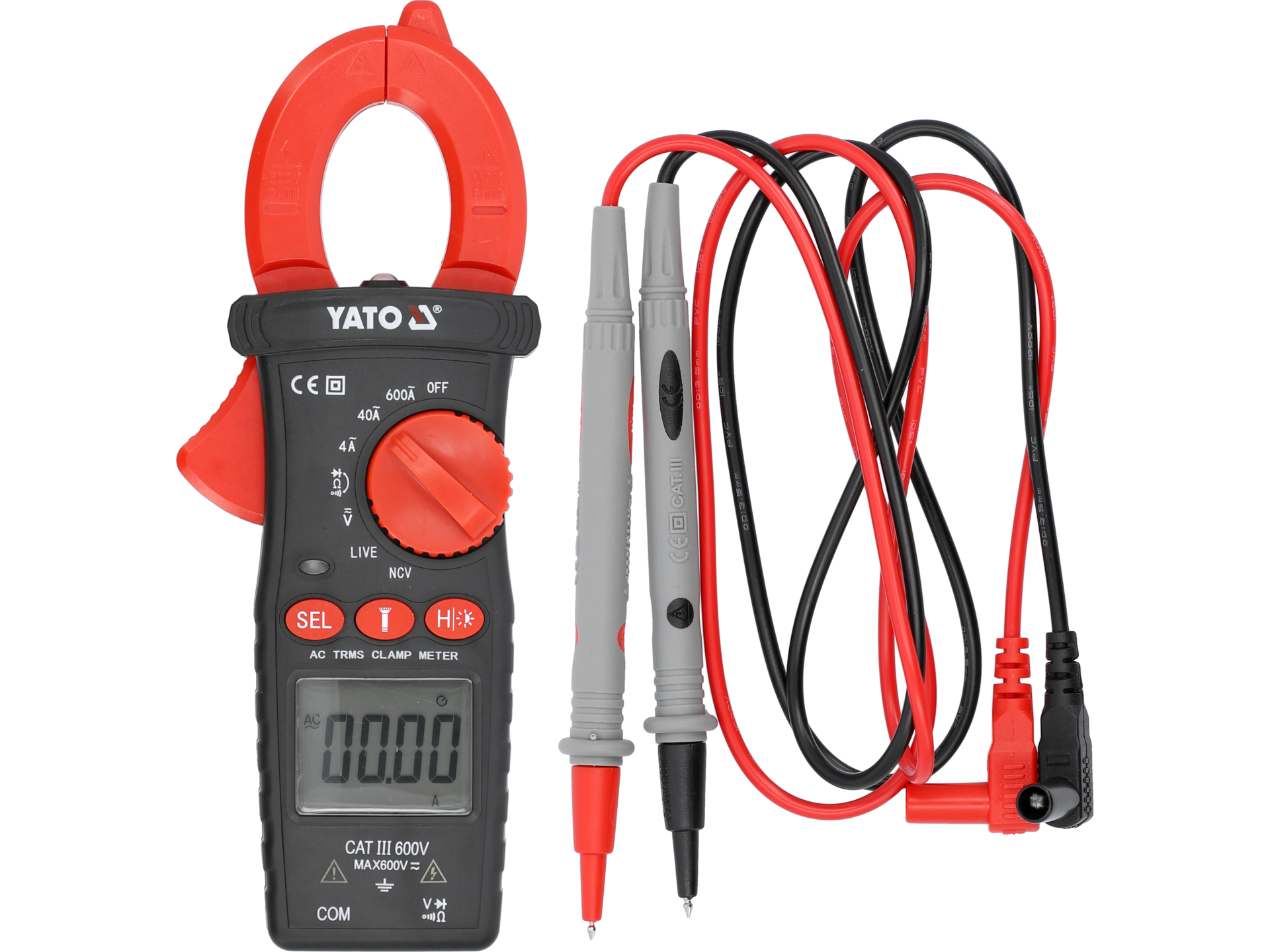

Clamp universal multimeter

Clamp universal multimeter with automatic range. It enables basic and advanced electrical measurements to be made. Equipped with measuring clamps to measure the AC current in a single conductor using the inductive method. The measurement takes place without disconnecting the circuit or disconnecting it from the power source, and allows a much higher current to be measured than with conventional electrical meters.

Basic measurements:

• AC voltage measurement: A.C. 0-600 V, TRUE RMS (40-1000 Hz)
• DC voltage measurement: D.C. 0-600 V
• AC current measurement: A.C. 0.001-600 A, TRUE RMS  (40-1000 Hz)
• resistance measurement: 0.1 Ω
  40 MΩ
• diode test: I_F: 1 mA, U_R: 2.3 V
• circuit continuity test: 0-50 Ω

Additional measurements:

• non-contact AC voltage detection: NCV
• phase presence measurement (sampler function)

Other information:

• LCD display, maximum displayed result: 3999
• illumination of the display and the field of the clamps
• acoustic signal in the continuity test for resistances below 50 Ω
• pincers expand to 26 mm

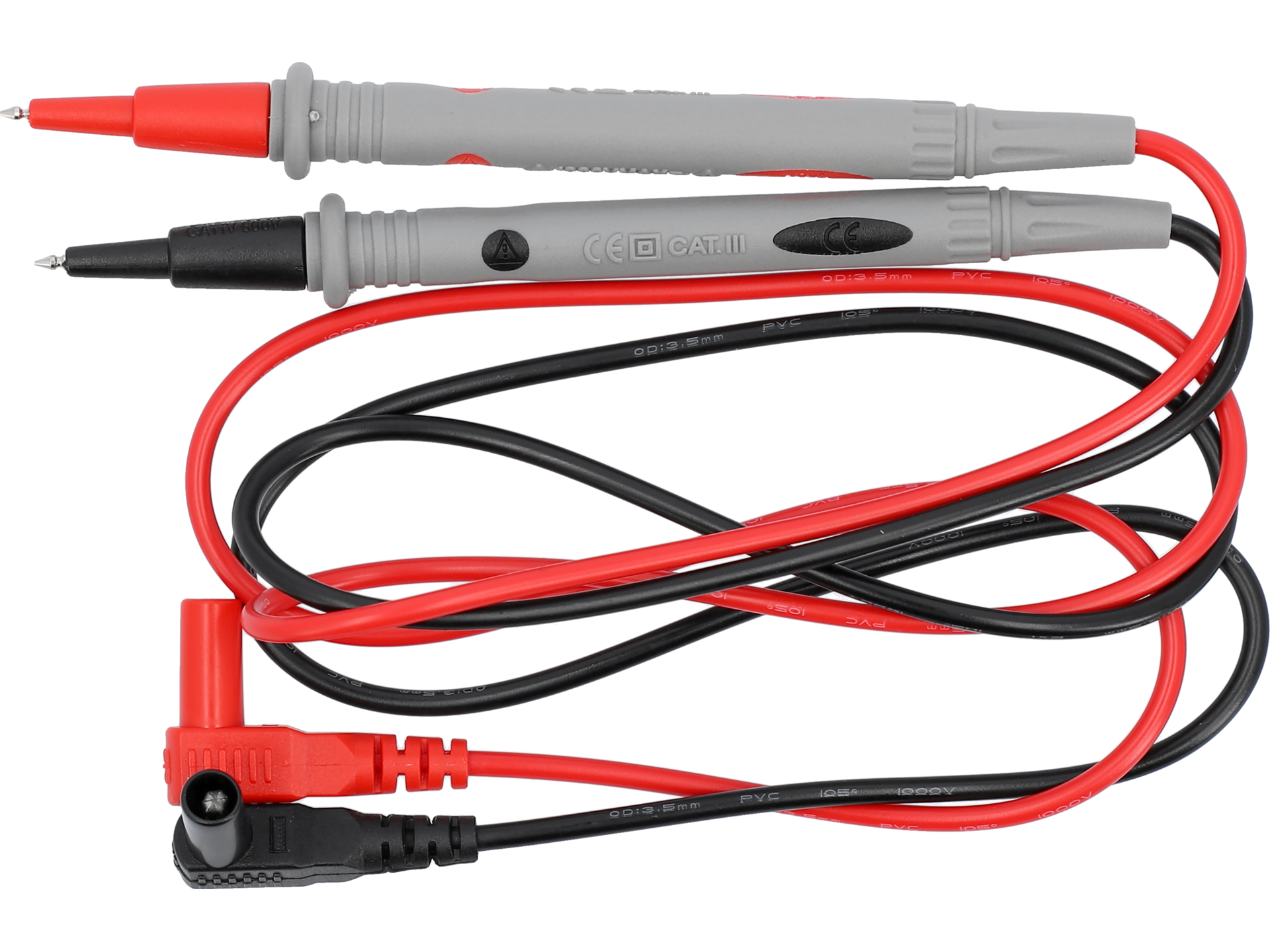

• measuring probes 12 cm long
• length of cable including probes: 85cm
• cable diameter including insulation: 3.5mm
• insulation of test leads: PVC
• automatic switch-off after 20 minutes of inactivity
• low battery indicator
• power supply: two 1.5 V (AAA) batteries

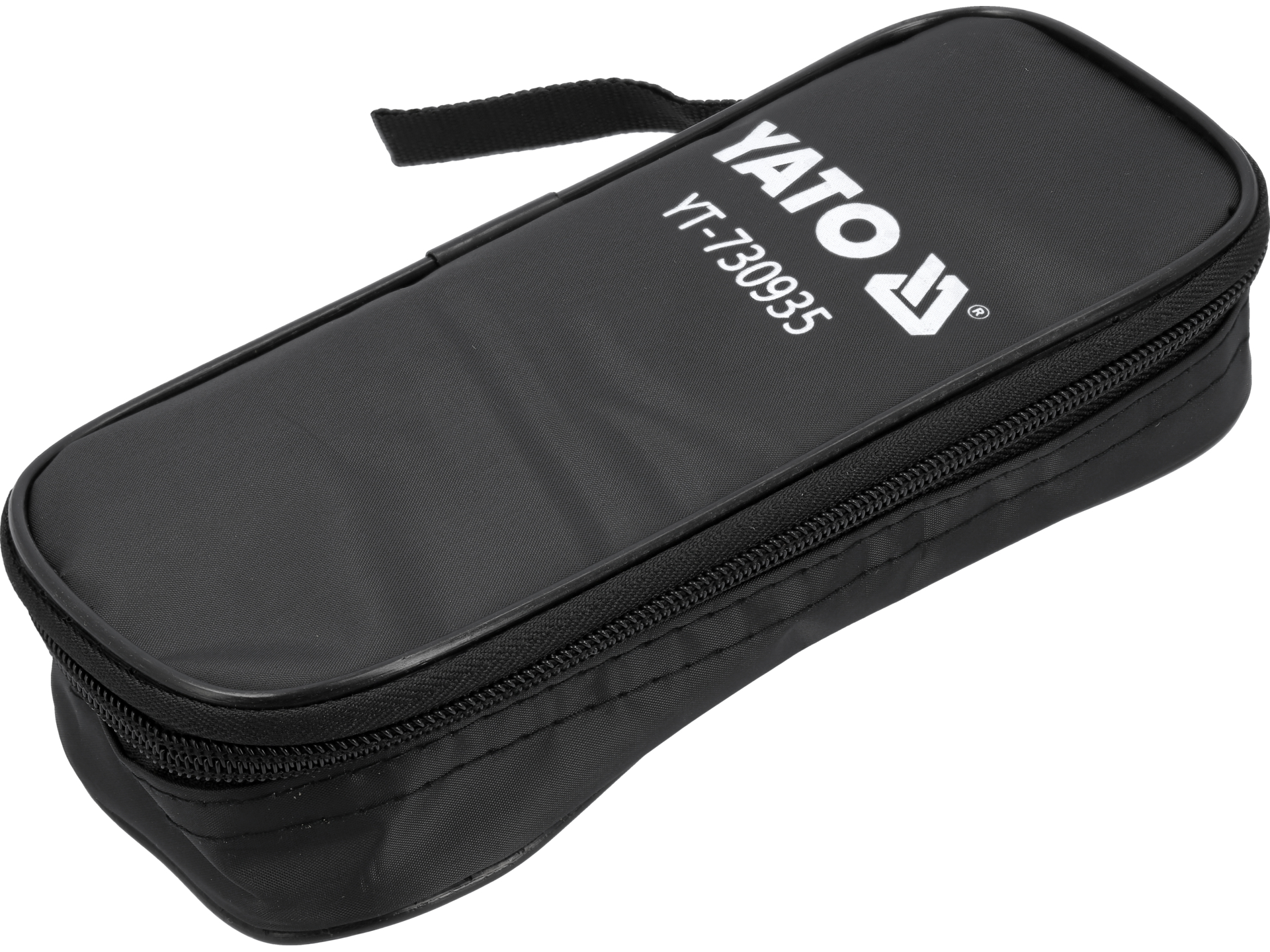

• cover included
