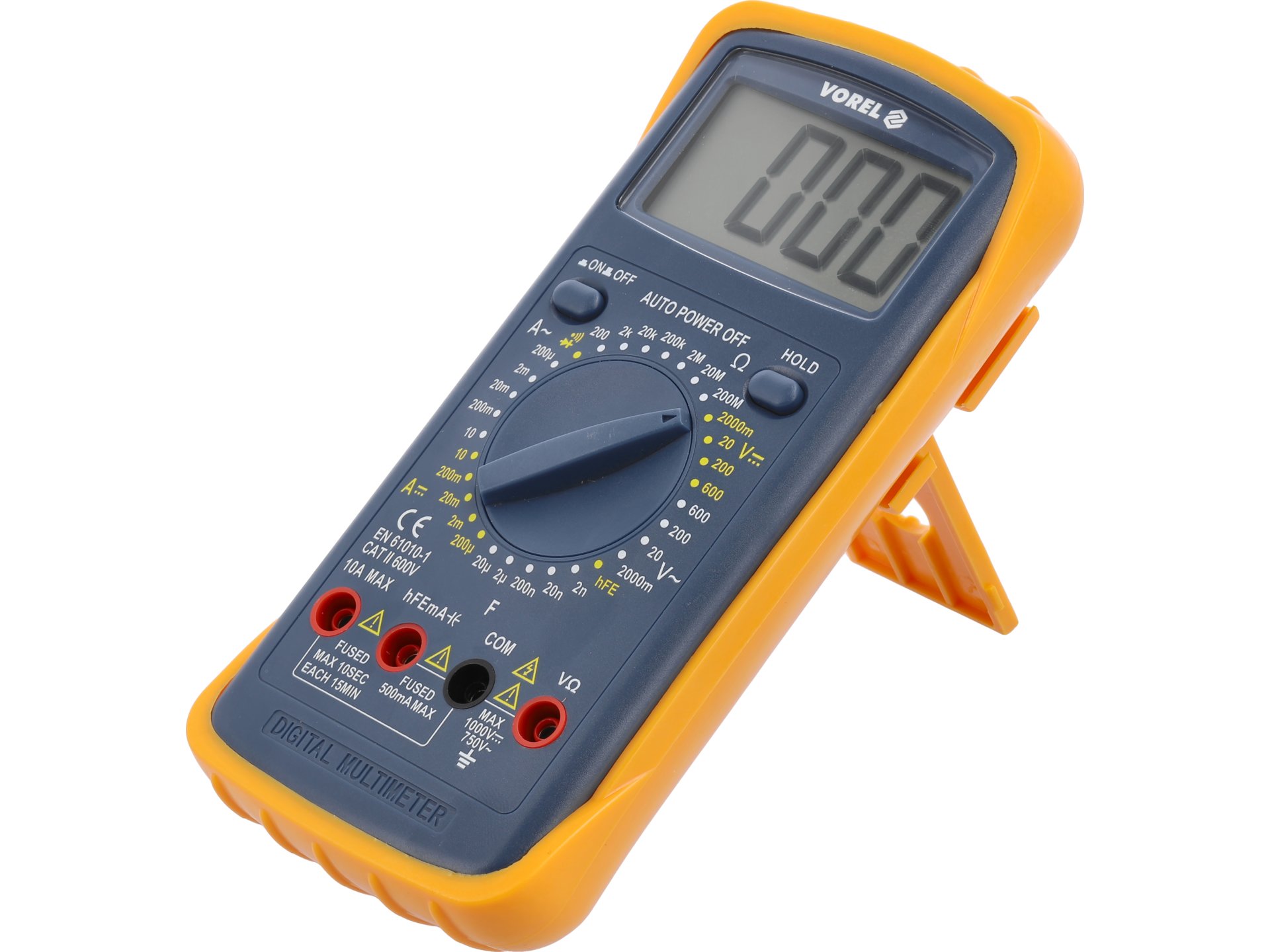

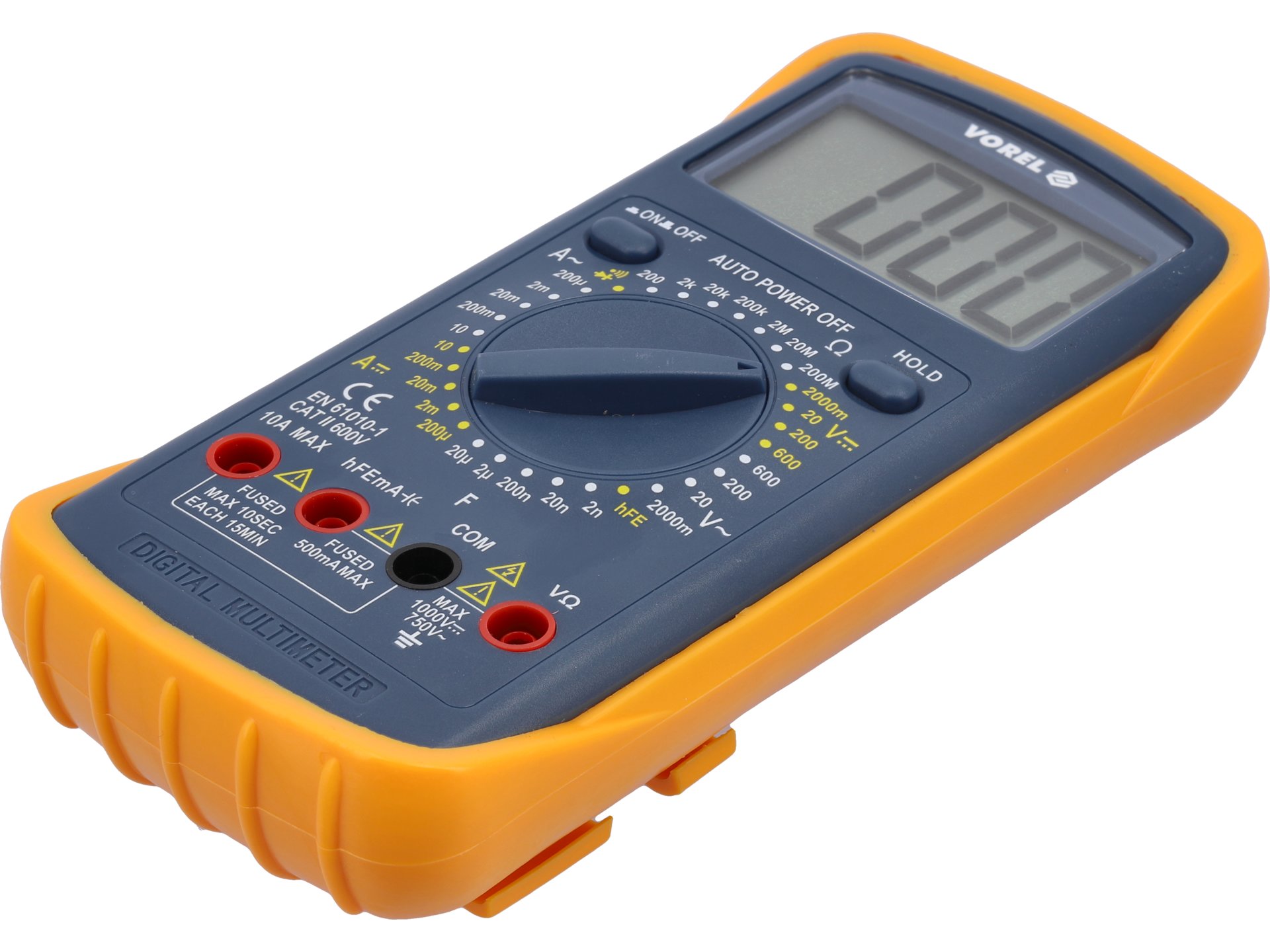

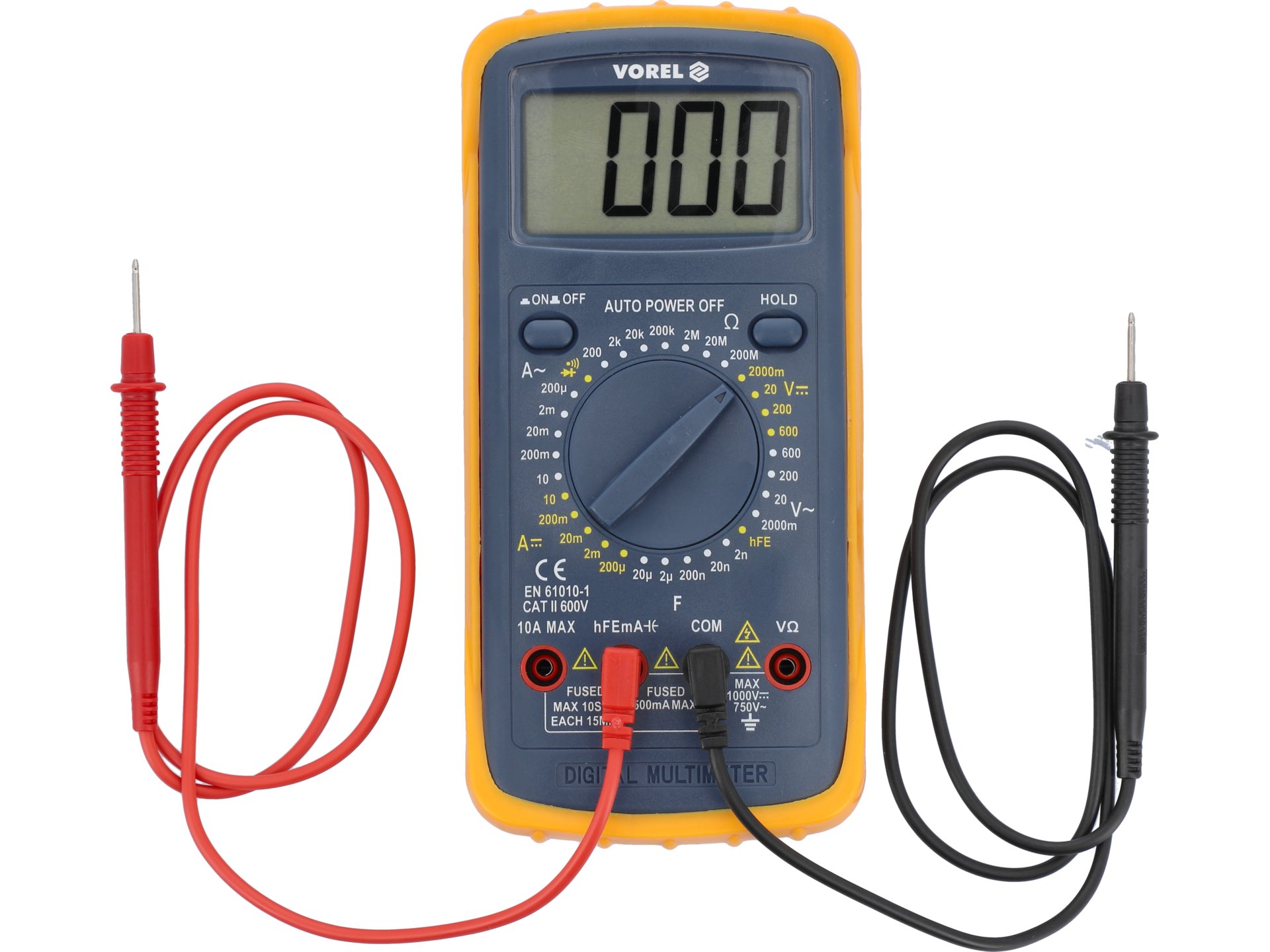

Digital universal multimeter

The universal meter 81783 with a manual range for each measurement enables the implementation of basic and advanced electrical measurements. An additional protection against mechanical damage is the so -called Holster
a rubber housing stretched onto the device housing. Basic measurements measurement of alternating voltage: A.C. 0-600V Fixed voltage measurement: D.C. 0-600V ACTION MEASUREMENT: A.C. 0-10A DC measurement: D.C. 0-10A resistance measurement: 0-200MΩ diode test: IF 1MA, UR 2.8V Circuit continuity test: 0-30Ω Additional measurements Capacitor capacity measurements: 0-20μF test of HFE transistors: 0-1000, built-in measuring socket Accuracy for measuring AC alternating current voltage. Calculations for the measurement result: 235V Measurement accuracy of the 81783 meter for this range is: ± (1.2% + 5), 1V resolution of the measurement error calculation Pattern: (measurement result x 1.2%) + 5 x Calculation resolution: (235 x 1, 2%) + 5 x 1 = 2.82 + 5 = 7.82V The result, taking into account the measuring error for indicating & nbsp 08 The result, taking into account the measuring error for indicating the measurement of the intensity of alternating current: 8a = 8 ± 0.26a* The table with resolution and accuracy for a given measurement is in the user manual. *Meter 81783 does not have the TRUE RMS measurement function, which is why the above result is a real effective value of AC voltage only for the correct sinusoidal course. Built -in Data Hold functions
behavior on the display of the currently measured value. Additional information LCD display, & nbsp; maximum display displayed: 1999 SUBJECT SIGNAL IN TRACTOR Meter settings only for diode test) Includes probe measuring probe construction with overload protections, ABS + so -called Holster, i.e. a rubber housing that protects the meter against mechanical damage, automatic switching off the meter low battery level. Power supply: 9V battery (6F22) Note in the case of measuring unknown values ​​using a meter with a manual change of range using the knob, you need to make measurements in the highest range Up to the range giving the most accurate result
otherwise we risk damage to the device.
